Today, ICFs account for nearly 30% of new construction in the United States, up from just 2% six years ago. But not all insulated concrete forms are created equal. For example, some ICFs can be difficult and costly to transport over long distances and require experienced contractors to ensure proper assembly.

Two main challenges for most ICFs are keeping the walls straight before pouring and attaching internal and external cladding or finishing. ThermoBlock does not have these problems and enjoys many additional competitive advantages as well. ThermoBlock is an innovative cast in place, insulated concrete form that is inexpensive to deploy, easy to use, fast to construct and features state-of-the-art strength and energy efficiency unrivaled in the construction industry worldwide.

The ThermoBlock system utilizes steel reinforced post and beam concrete construction. Resembling large scale Lego type blocks, the system uses a combination of interlocking, lightweight, stackable, polyurethane blocks, which can be fabricated onsite and in remote locations, together with concrete, steel reinforcing rebar, and a patented light gauge steel internal bracing system. Because the system utilizes high density closed cell polyurethane foam, it offers superior insulation value, is Class 1 fire rated, the best rating possible, satisfies all seismic and hurricane code requirements, is not a food source, and thus is fully resistant to insects and other animals, eliminates mold and mildew and is exceptionally quiet.

The ThermoBlock construction system creates a strong, stable concrete structure. It all begins with the ThermoBlock form. ThermoBlock can work with a variety of footings or foundations. Rebar is stubbed in at 16-inch or 40 centimeter centers. The ThermoBlock forms easily glide down the rebar and lock into place without mortar. To add stability and a nailing surface, metal studs are added on 16-inch or 40 centimeter centers. Wiring and piping are easily integrated into the ThermoBlock system using the existing ThermoBlock channels. Rebar is also added horizontally throughout the structure, forming a steel reinforced concrete grid to further enhance its overall structural integrity. The concrete is then poured into the ThermoBlock from the top, creating an incredibly strong, insulated energy efficient structure. The ThermoBlock ICF stays in place helping to insulate this steel reinforced concrete structure.

What’s more, the system is easily transportable. A ThermoBlock mobile manufacturing facility fits inside a single 40-foot shipping container, making it easy to bring in-country and onsite. This is ideal for remote locations and emergency situations, ensuring a steady supply chain, maximizing the use of local labor and eliminating costly and sometimes dangerous disruptions and delays.

In all, ThermoBlock provides a superior quality and secure living environment that can be deployed under budgets that make other technologies unattractive. Cost-effective, strong, and energy efficient, fast, in-country manufacturing with a minimal learning curve and easily transported to any location, it’s all part of what makes ThermoBlock the best way to rapidly and cost-effectively provide superior quality vertical infrastructure, improve living quality standards for users of homes and public infrastructure, build local capacity, and create permanent jobs in any location worldwide.

For more information about ThermoBlock and our portfolio of technologies, download our free 21 page ebook to get started: https://www.thermoblockicf.com/thermoblock-icf-white-paper-the-simplicity-of-technology-in-high-performance-building-products/

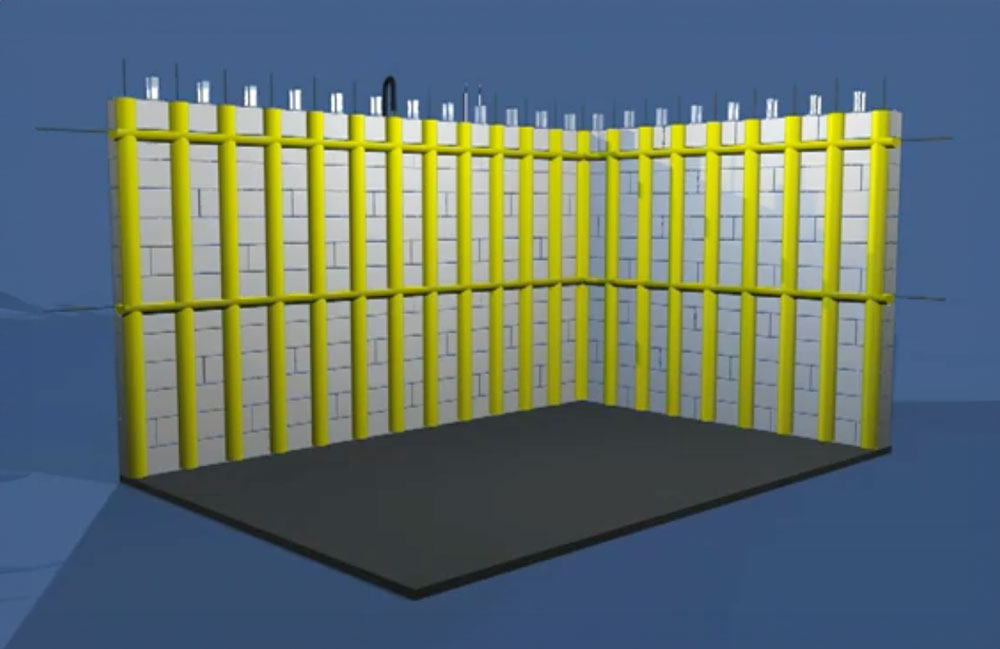

ThermoBlock® Steel Reinforced Concrete Post and Beam Wall System Construction

Download FREE 21 Page Ebook and ThermoBlock® Guide
